1,837 Sq Ft Traditional L-Shaped 1.5-Story House Plan with 3 Bedrooms, 2 Bathrooms and 1-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
The digital house design concept 76013R, available for purchase, presents a Traditional 1.5-story single-family home with an L-shaped footprint for a family of 3-4 people. Total Heated 1,837 Sq Ft holds 3 bedrooms and 2 bathrooms, while the attached 1-car garage completes the layout. A gable roof with a 7/12 pitch gives the house a clear silhouette.

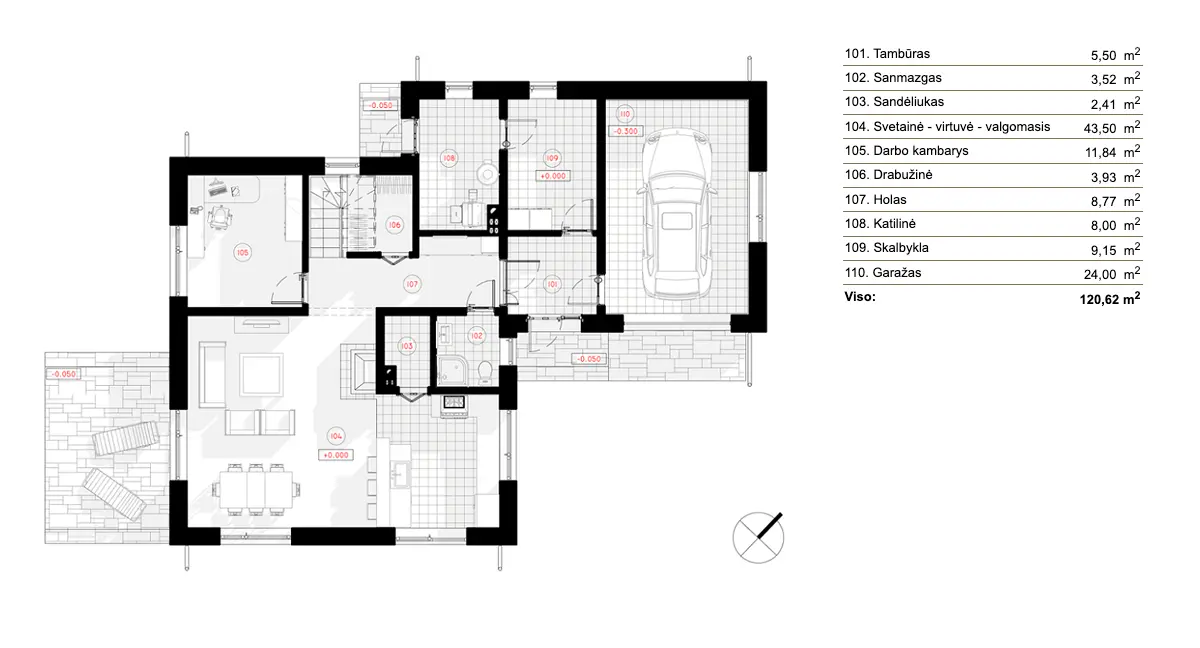

The entry leads into an open floor plan where the large family room with a fireplace gathers the household around one focal point. The large kitchen works around an island and a breakfast bar, a walk-in pantry keeps supplies out of sight, and the breakfast nook gives everyday meals their own spot. A home office on the main floor lets you work away from the bedrooms, and the laundry and utility room on the same level keep chores off the stairs.

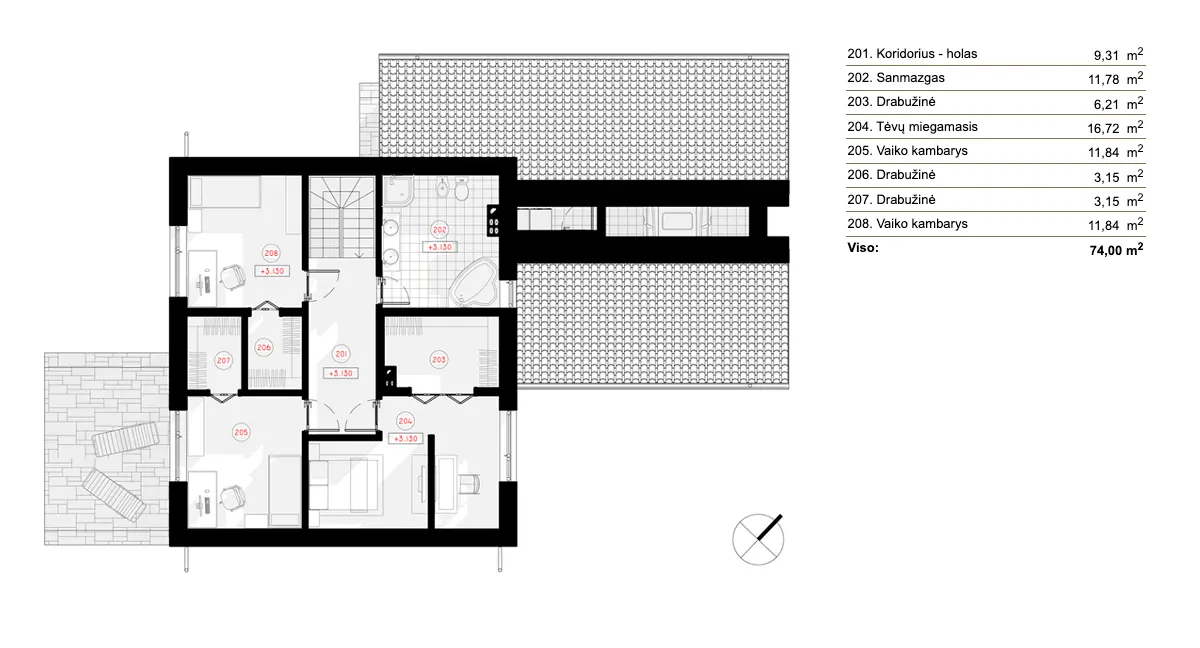

Upstairs, the clustered bedrooms keep the family close together. The primary suite with a walk-in closet shares the second floor with the two other bedrooms, and the storage room keeps belongings in order.

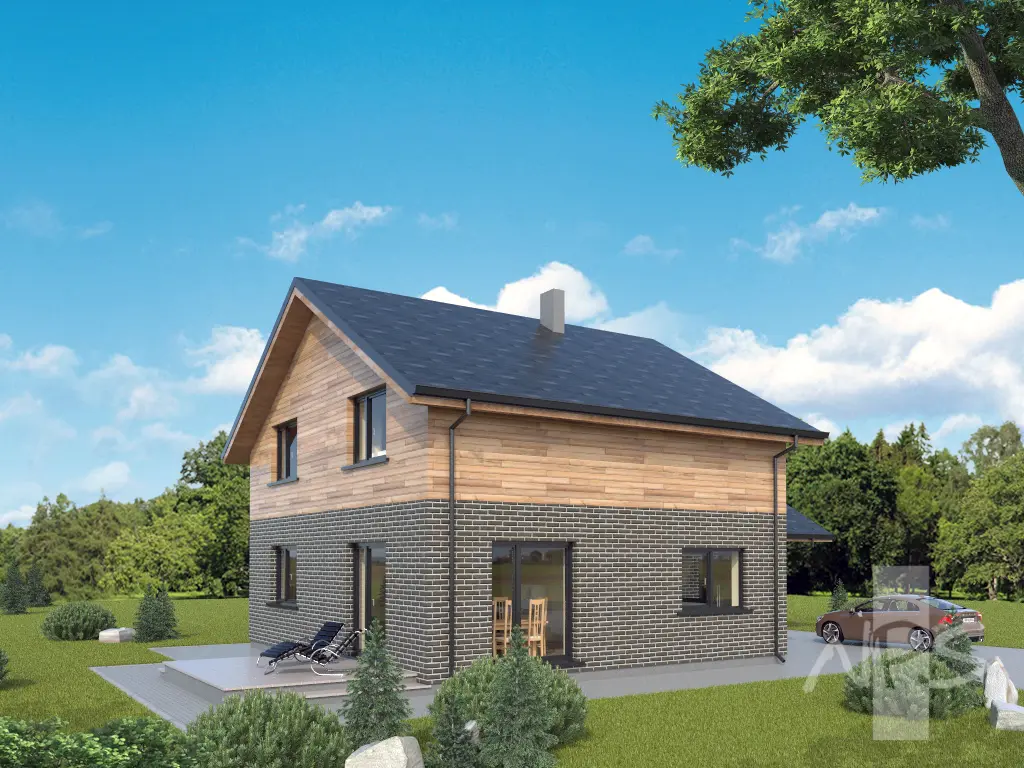

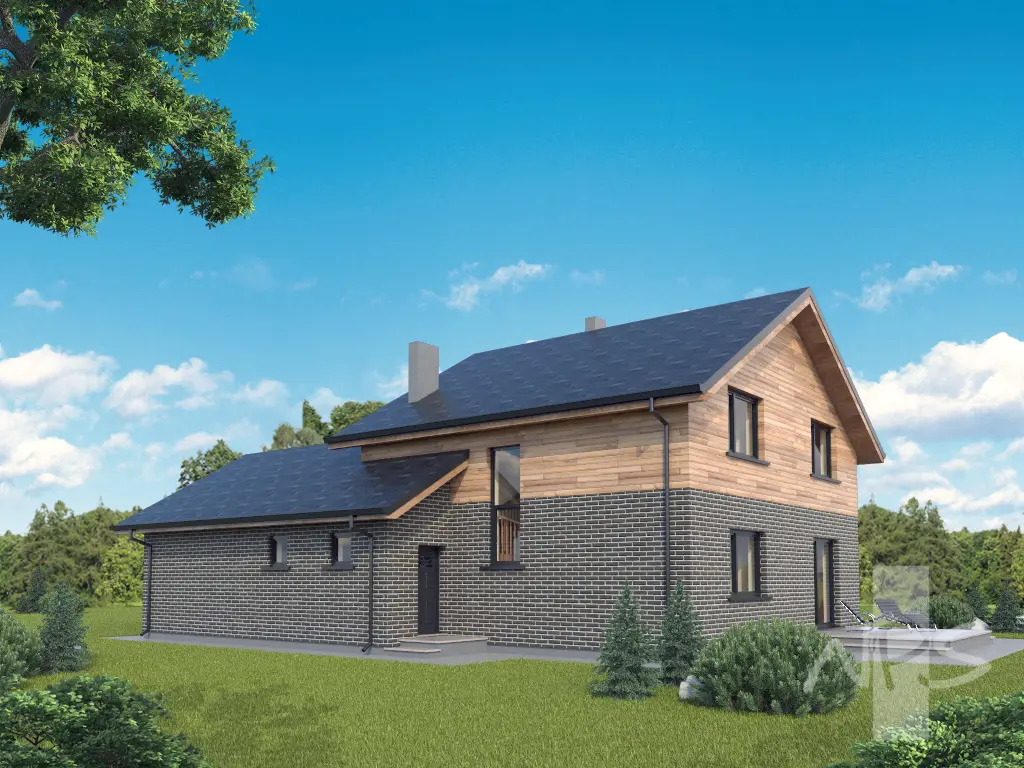

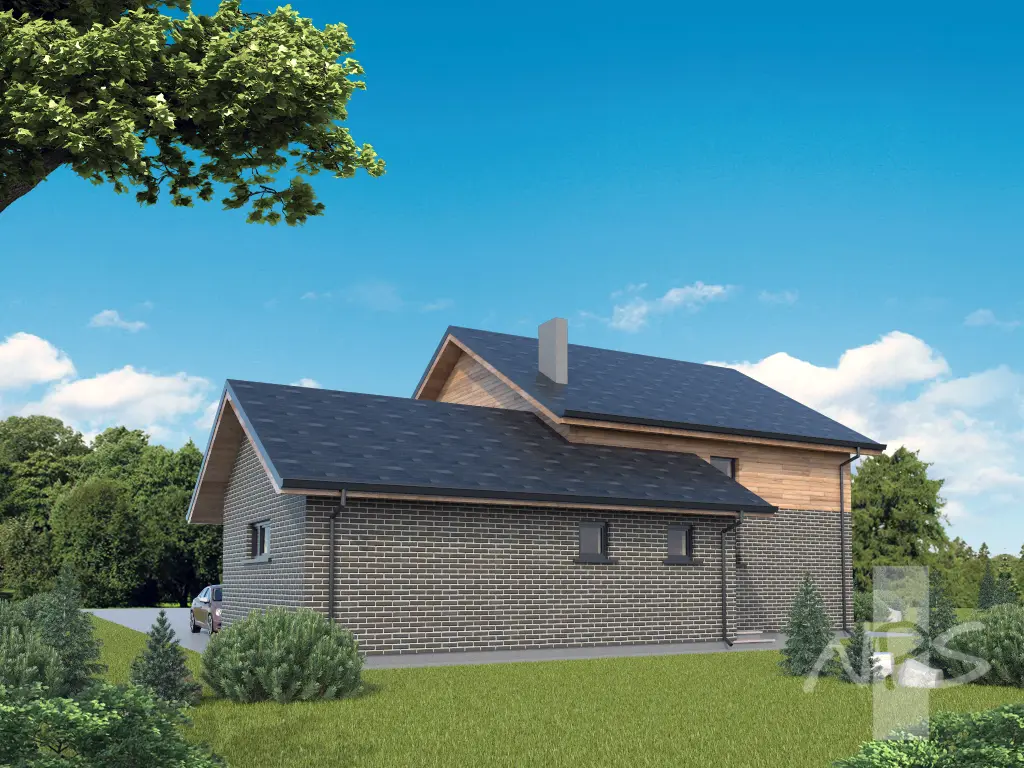

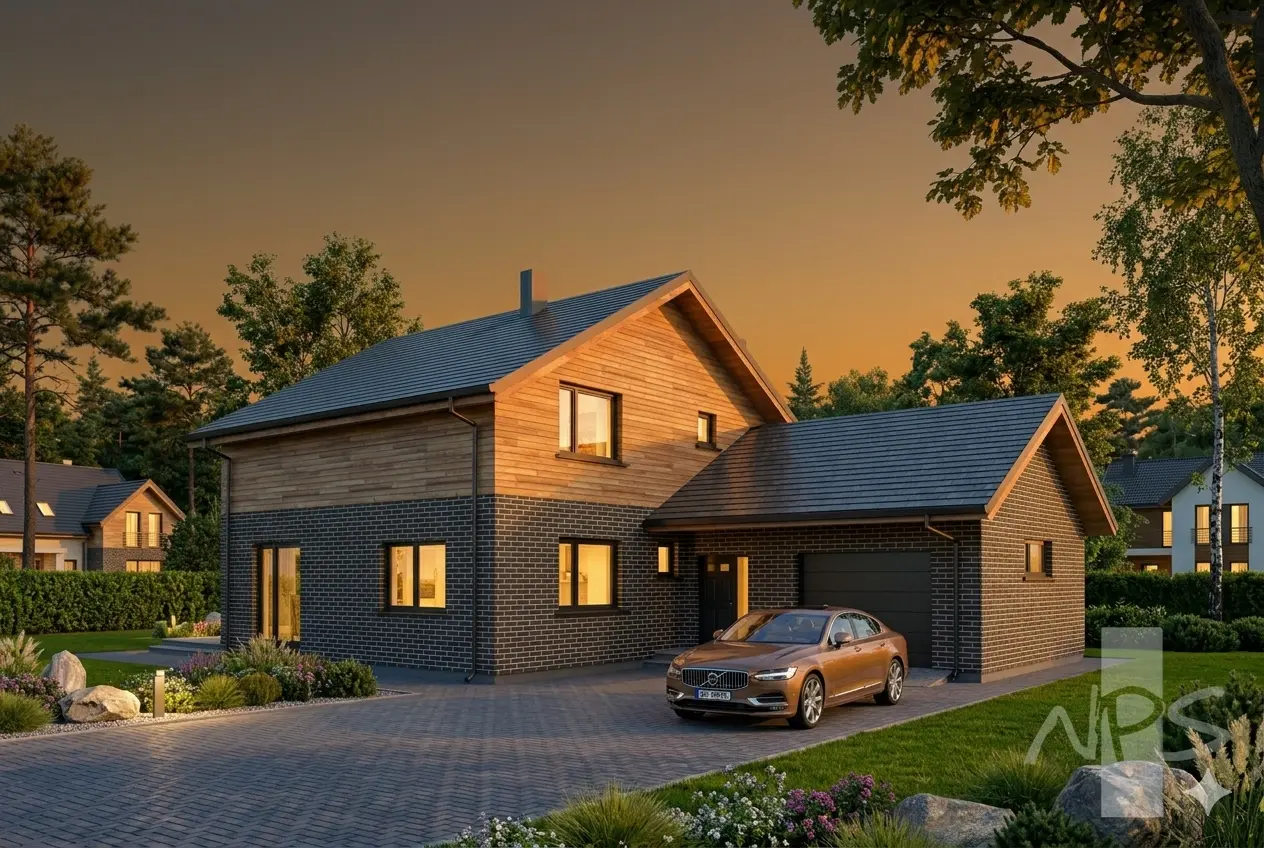

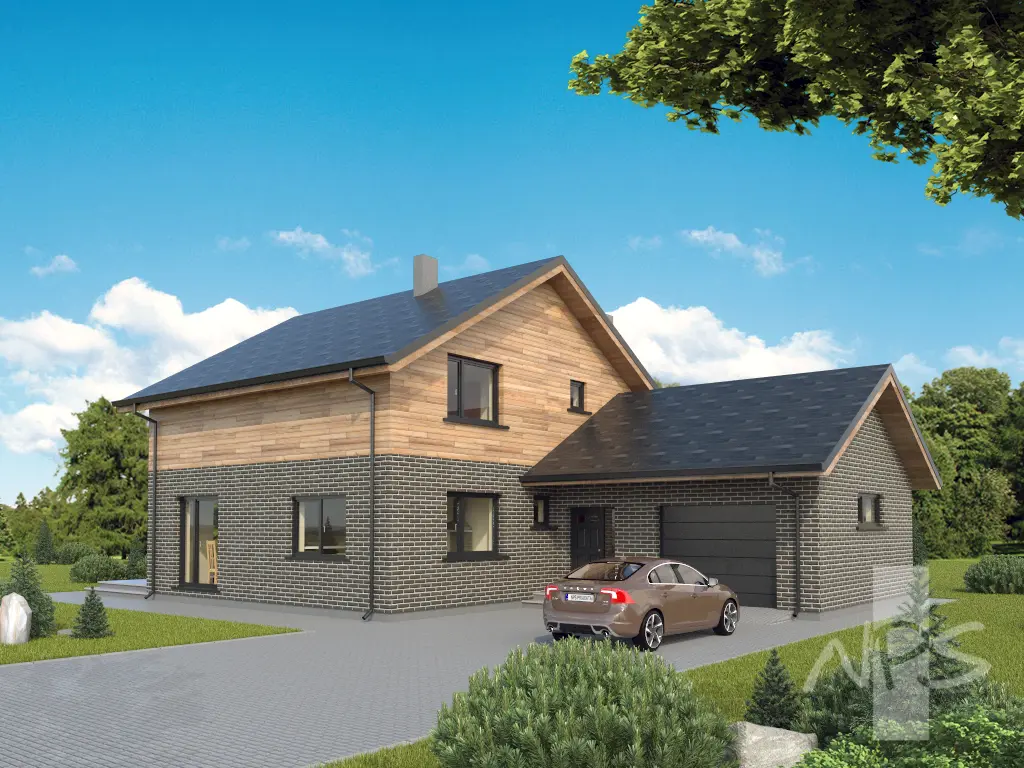

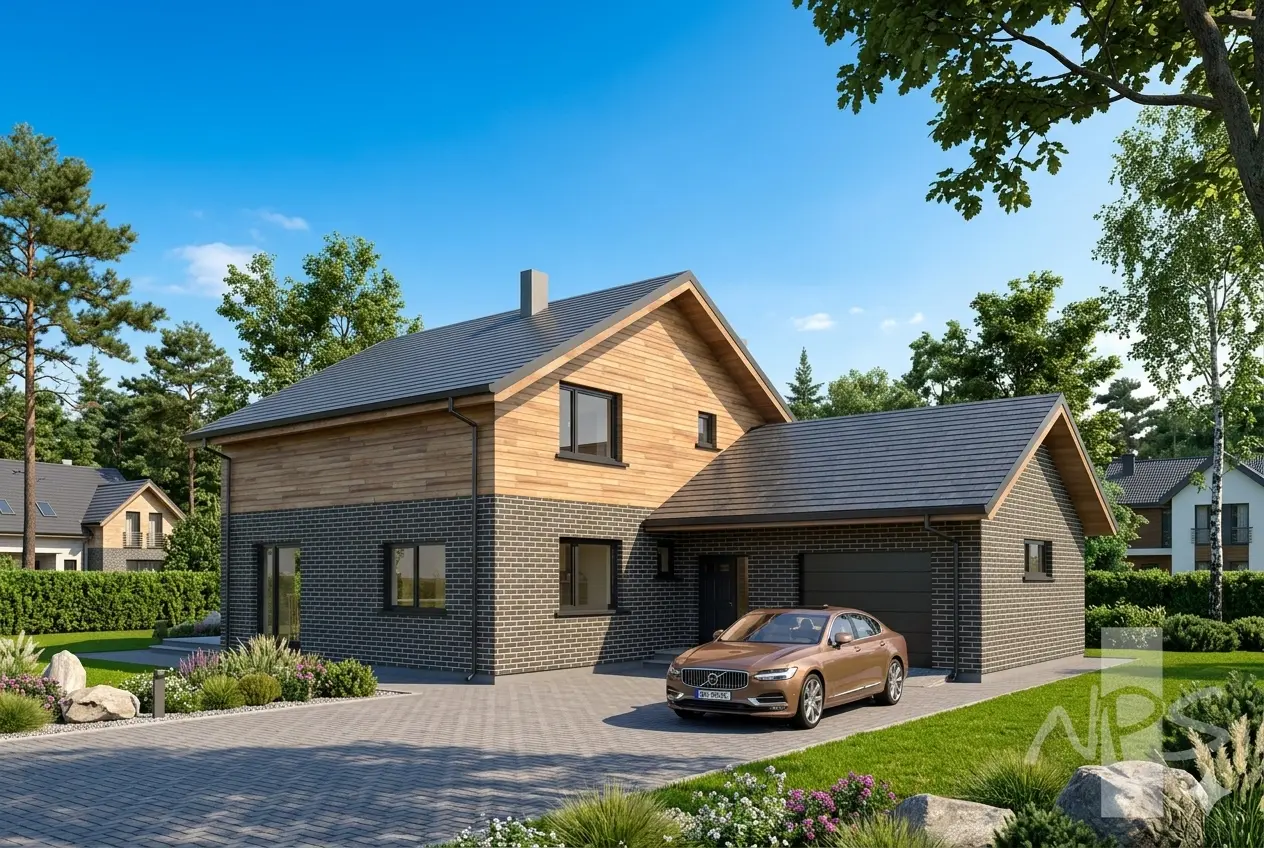

A deck extends the living space outdoors. The attached front-entry garage gives direct access from the street, and the ridge parallel to the street keeps the facade calm and balanced. The exterior pairs stone/brick veneer with wood. The main foundation is a bored pile foundation, with slab, strip footing or block foundation as options; the exterior walls are planned in sand-lime block, with aerated concrete, ceramic block or timber frame as alternatives. In short: Total Heated 1,837 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
